Heavy Industry

Controls, brakes, and motors for heavy moveable structures.

nagatoshi-shimamura-yCPrEOZbPXw-unsplash

Columbus McKinnon brings its expertise with Magnetek brand innovative power control solutions to the Heavy Moveable Structures industry. State-of-the-art controls, brakes, and motors, combined with our extensive application engineering experience, make our products the ideal control system solution for moveable bridges, flood control equipment, dam gates, moveable stadium roofs, water navigation structures, and overhead traveling crane applications.

Brands Serving the Heavy Moveable Structures Industry

magnetek-color pfaff-silberblau-color Duff-Norton_Color 10

The CM BatteryStar Battery Powered Chain hoist is built with industry-leading technology from Columbus McKinnon and Milwaukee Tool®. Designed for portability and easy installation, the BatteryStar can have you lifting in minutes – simply attach the hoist to an anchor point, slide in a battery, and you’re ready to go!

DISCOVER EVERYTHING YOU NEED TO KNOW ABOUT THE BATTERYSTAR

In the fast-paced world of construction, the ability to move materials quickly and safely from point A to point B is crucial. Change the way you think about lifting technology with our new battery-powered hoist that sets a new benchmark for efficiency, portability, and safety on construction sites.

See how the CM BatteryStar redefines material hoisting

The Ultimate HMS Solution

Columbus McKinnon offers variable frequency drives, shoe and disc brakes, and motors, which are designed to meet your exact specifications. The Company’s history of supplying high-quality products, in addition to our application engineering expertise, provides the diversity of experience required to deliver cutting-edge solutions for the Heavy Moveable Structures industry.

brad-pouncey-a21Mdnx7kH4-unsplash

The “Iron Gate”, on the Danube River in the southern Carpathian Mountains on the border from Romania to Serbia, is regarded as one of the most impressive gorges in Europe. Two river power stations built in 1972 – “Iron Gate” 1 and 2 – with a lockage had tamed what had been up until then the most dangerous section of the Danube River for navigation. For the maintenance of this lockage, Columbus McKinnon Engineered Products GmbH, Kissing/Germany, has now designed and installed a special lifting device. The linear lifting solution consists of four high-precision and proven heavy-duty screw jack elements SHE 100.1 made by Pfaff-silberblau. These lift and lower the heavy lock gate weighing some 200 t by 700 mm – with a deviation of less than 0.1 mm.

Read More

Last year saw the start of a major construction project in Kazakhstan designed to establish the ferry terminal in Kuryk on the shores of the Caspian Sea as the hub for the transhipment-free transportation of goods to Europe. Columbus McKinnon Engineered Products, working closely on this construction site with the local company in St. Petersburg/Russia, is now fitting the two giant loading bridges out each with 24 Pfaff-silberblau special screw jacks SHE 150.1 in addition to 48 special gear motors and, in doing so, is creating the technical basis that will allow entire freight trains to quickly drive in and out of the ferries before the end of the year.

Read More

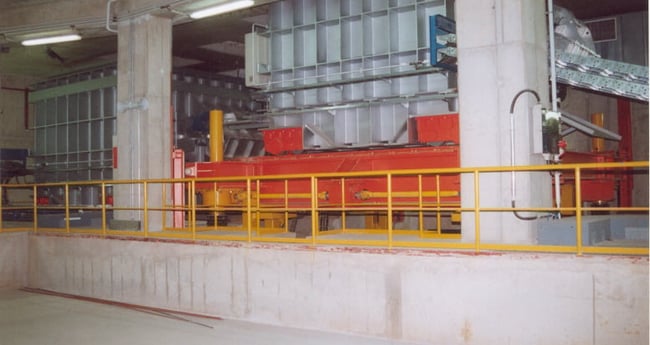

Lifting heavy loads under the harshest of conditions has always been one of the specialties for the jacking systems from Pfaff-silberblau. With a clever special jacking system based on its versatile SHE worm-gear screw jacks, the company is now reducing downtimes for the steel industry’s galvanizing lines. The crucial feature: A special sensor monitors the temperature of the gearbox oil, and an active cooling circuit keeps it at the ideal level. Simultaneously, a contactless sensor constantly monitors the temperature at the screw and does not turn off the system unless there is a risk of overheating. In this way, system operators can ensure that their systems remain functional, but also help to minimize operational interruptions.

Read More

Nearly five years after Hurricane Sandy, the second-costliest hurricane in United States history, cities along the eastern seaboard were still working to discover – and repair – the damage inflicted on their infrastructure by the Category 3 storm. Magnetek, a Columbus McKinnon brand, had the opportunity to help mend some of the hurricane’s long-term damage by rebuilding industrial brakes used in the operation of a four-lane drawbridge that spans a busy navigation channel in New York City.

READ MORE

Milwaukee's one-of-a-kind ballpark features traditional architecture with a unique fan-shaped retractable roof. Since the roof moves to provide protection from the elements, it required design changes to improve performance. Nitrided Magnetek brand steel brakes included as part of new drive trains were able to provide protection and consistent performance.

READ MORE

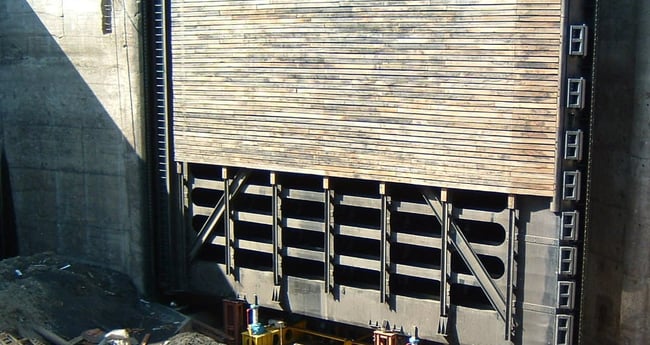

Lifting device from Pfaff-silberblau for lock in the “Iron Gate” in Romania

The “Iron Gate”, on the Danube River in the southern Carpathian Mountains on the border from Romania to Serbia, is regarded as one of the most impressive gorges in Europe. Two river power stations built in 1972 – “Iron Gate” 1 and 2 – with a lockage had tamed what had been up until then the most dangerous section of the Danube River for navigation. For the maintenance of this lockage, Columbus McKinnon Engineered Products GmbH, Kissing/Germany, has now designed and installed a special lifting device. The linear lifting solution consists of four high-precision and proven heavy-duty screw jack elements SHE 100.1 made by Pfaff-silberblau. These lift and lower the heavy lock gate weighing some 200 t by 700 mm – with a deviation of less than 0.1 mm.

2012 PR04 Pfaff-silberblau_IronGate

Pfaff-silberblau screw jacks and drives for bridge construction

Last year saw the start of a major construction project in Kazakhstan designed to establish the ferry terminal in Kuryk on the shores of the Caspian Sea as the hub for the transhipment-free transportation of goods to Europe. Columbus McKinnon Engineered Products, working closely on this construction site with the local company in St. Petersburg/Russia, is now fitting the two giant loading bridges out each with 24 Pfaff-silberblau special screw jacks SHE 150.1 in addition to 48 special gear motors and, in doing so, is creating the technical basis that will allow entire freight trains to quickly drive in and out of the ferries before the end of the year.

2017 PR01 Kuryk Bild1a

Pfaff-silberblau - product overview lifting and motion technology

We are technology leaders in components and system solutions for mechanical motion and lifting technology.

Our product portfolio includes #screwjacks, #linearmotion, #liftingcolumns, #liftingtables, #electric and #manuel #wireropewinches, #screws, #nuts, #bevelgear boxes and #accessories.
