CMLA-A Linear Industrial Linear Actuator
CMLA-A Linear Industrial Linear Actuator
The CMLA-A Series 500 lb. capacity linear actuator with an IP66S protection rating, sealed bearings, and high-quality lubricants is a robust and versatile device designed for industrial and outdoor applications where it will be exposed to dust and water. Sealed bearings promote a long service life by preventing contaminants from entering. High-quality lubricants provide smooth operation and extended lifespan.
Free Application Analysis
Linear Actuator Design Guide Duff Norton Capabilities Brochure - Positioning and Process Solutions CMLA-A Product Sheet CMLA-A Specs and Part Numbers CMLA-A Dimensional Drawing Linear Actuator Quick Reference Guide Duff-Norton Product Capabilities Brochure

Features and Benefits

FEATURES and BENEFITS

Rated Load

Fully rated at 500 lbs to handle dynamic loads both in compression and tension

Lifting Speed

Up to 1.5 in/sec at rated load

Standard stroke lengths

3.9 in , 5.9 in, 11.8 in, 17.7 in, and 23.6 in

Safety

Safety clutch aids in the prevention of damage due to accidental overload conditions

Options

OPTIONS

  • Screw Models: Both ball and trapezoidal screw models available
  • Motor Voltages: 115Vac or 230Vac single phase
  • Electric brake: Standard on ball screw models
  • Feedback: Position feedback potentiometer
  • Limit Switch: Adjustable limit switches



Specifications

CMLA A Series 500 lb Product Specifications
Capacitor Model Motor Max. Dynamic Load Max. Static Load Screw Gear Motor Power Amperage Lifting Speed Duty Cycle Capacitor Rating
# Type (lbs) N (lbs) N Type Ratio Volts Amps (in/s) mm/s (in/hr) m/hr mdf
SK6405-7-13 AC (500) 2200 (750) 3336 Trapezoid 11.5 115 2.3 (0.71) 18.0 (810) 20.6 35
SK6405-7-10 AC (500) 2200 (750) 3336 Trapezoid 11.5 230 1.4 (0.71) 18.0 (810) 20.6 10
SK6405-7-13 AC (500) 2200 (750) 3336 Ball 6.5 115 2.4 (1.5) 38.1 (1200) 30.5 35
SK6405-7-10 AC (500) 2200 (750) 3336 Ball 6.5 230 1.5 (1.5) 38.1 (1200) 30.5 10
Notes:
1. The correct capacitor mfd should be used for each model or the cylinder will not perform as rated.
2. Order Hard Start Kit 192036494 for applications where high starting torque is required (low temperature, high starting load)

Models

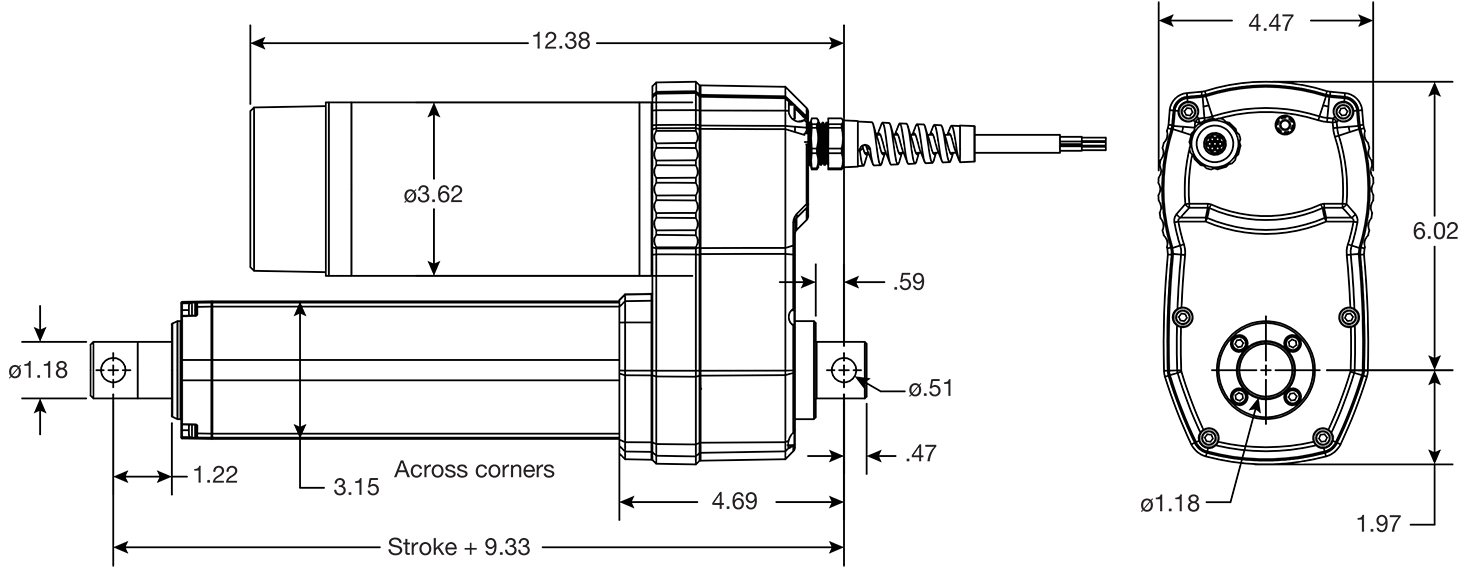

CMLA A Series 500 lb Dimensions
