HMPB 250 Series Industrial Linear Actuator
HMPB 250 Series Industrial Linear Actuator

HMPB Series - 250 lbs

Linear Actuators

HMPB 250 Series Industrial Linear Actuator
HMPB 250 Series Industrial Linear Actuator

The HMPB Series 250 lb. capacity heavy-duty linear actuator with corrosion-resistant aluminum housing and automatic overload reset is a robust and reliable device designed for demanding applications requiring controlled linear motion. Built for long life and durability in tough environments.

Buy Now Free Application Analysis
HMPB Product Sheet - 250 lb Linear Actuator Design Guide HMPB Dimensional Drawing - 250 lb HMPB O&M Manual - 250 lb HMPB Specs & Part Numbers - 250 lb Linear Actuator Quick Reference Guide Duff-Norton Product Capabilities Brochure

Features and Benefits

FEATURES and BENEFITS

HMPB Series - 250 lb Linear Actuator

VERSATILE DESIGN

Wide range of capacities and voltages for integration into a variety of application

DURABLE

Heavy duty design for long life in tough environments

CORROSION RESISTANT

Aluminum housing and outer tube

Options

OPTIONS:

  • Stainless steel construction
  • Potentiometer for precise position feedback
  • Standard double clevis mounting with options for trunnion, and threaded ends
  • Weather resistant sealant for IP52 rating
  • Bellows boot protection
  • Load limiting friction disc clutch

Specifications

HMPB 250 LB Series Product Specifications
Part Number Rated Loads Stroke Length Retracted Length Voltage Current Draw* Speed* Limit Switch Duty Cycle*
# (lbs) N In mm In mm     in/s mm/s
MPB3905-3 (250) 1112 3 76 11.25 285 115 VAC 2 0.7 18 No 23%
MPB3905-6 (250) 1112 6 152 14.25 362 115 VAC 2 0.7 18 No 23%
MPB3905-12 (250) 1112 12 304 20.25 514 115 VAC 2 0.7 18 No 23%
MPB3905-12 (250) 1112 18 457 26.25 666 115 VAC 2 0.7 18 No 23%
MPB4905-3 (250) 1112 3 76 11.25 285 115 VAC 1 0.6 15 No 21%
MPB4905-6 (250) 1112 6 152 14.25 362 115 VAC 1 0.6 15 No 21%
MPB4905-12 (250) 1112 12 304 20.25 514 115 VAC 1 0.6 15 No 21%
MPB4905-18 (250) 1112 18 457 26.25 666 115 VAC 1 0.6 15 No 21%
HMPB3905-3 (250) 1112 3 76 11.25 285 115 VAC 5 1.4 35 No 11%
HMPB3905-6 (250) 1112 6 152 14.25 362 115 VAC 5 1.4 35 No 11%
HMPB3905-12 (250) 1112 12 304 20.25 514 115 VAC 5 1.4 35 No 11%
HMPB3905-18 (250) 1112 18 457 26.25 666 115 VAC 5 1.4 35 No 11%
PHMPB3905-3 (250) 1112 3 76 11.25 285 115 VAC 5 1.4 35 Yes 10%
PHMPB3905-6 (250) 1112 6 152 14.25 362 115 VAC 5 1.4 35 Yes 10%
PHMPB3905-12 (250) 1112 12 304 20.25 514 115 VAC 5 1.4 35 Yes 10%
PHMPB3905-18 (250) 1112 18 457 26.25 666 115 VAC 5 1.4 35 Yes 10%
* At Rated Load

Models

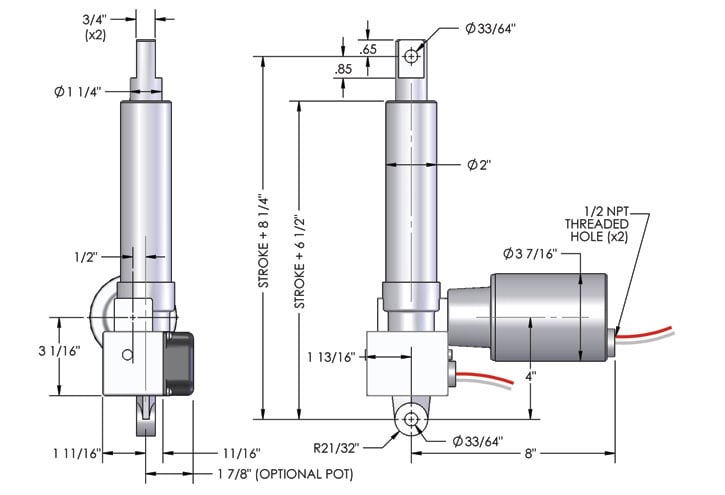

HMPB 250 lb. Series Dimensions

HMPB-250 Series Dimensions

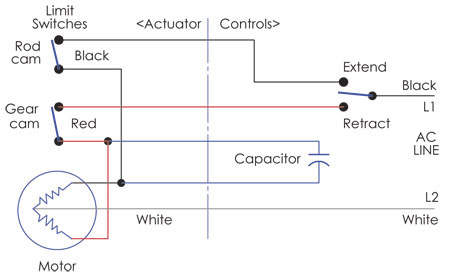

HMPB 250 lb. Series Wiring Diagram

HMPB-250 Series Wiring Diagram

Note: For all AC motors, a capacitor is required. The capacitor can be supplied the customer or Duff-Norton
