MPD Series - 500 lbs
Linear Actuators
The MPD Series 500 lb. capacity with a mechanical braking system, and internal, adjustable limit switches is a device designed for precise and repeatable positioning in demanding applications. It features robust construction and is capable of handling significant loads while maintaining accuracy.
Features and Benefits
FEATURES and BENEFITS:
- Heavy duty design for long life in tough applications
- Patented spring brake
- Aluminum housing and outer tube
- Steel translating tube – zinc chromate plated
- Double clevis mounting
- Internal adjustable limit switches
- Automatic reset thermal overload motor protection
Options
OPTIONS:
- Weather resistant sealant – IP52
- Potentiometer feedback
- Bellows boot
- Threaded end
Specifications
MPD Series Product Specification |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed* | Limit Switch | Duty Cycle* | |||
| # | (lbs) N | in | mm | in | mm | VDC | Amp | in/s | mm/s | Y/N | % |
| MPD6905-3 | (500) 2224 | 3 | 76 | 11.25 | 286 | 12 | 23 | 0.75 | 19 | Yes | 19% |
| MPD6905-6 | (500) 2224 | 6 | 152.4 | 14.25 | 362 | 12 | 23 | 0.75 | 19 | Yes | 19% |
| MPD6905-12 | (500) 2224 | 12 | 304.8 | 20.25 | 514 | 12 | 23 | 0.75 | 19 | Yes | 19% |
| MPD6905-18 | (500) 2224 | 18 | 457.2 | 26.25 | 667 | 12 | 23 | 0.75 | 19 | Yes | 19% |
| MPD6904-3 | (500) 2224 | 3 | 76 | 11.25 | 286 | 12 | 12 | 0.85 | 22 | Yes | 17% |
| MPD6904-6 | (500) 2224 | 6 | 152.4 | 14.25 | 362 | 12 | 12 | 0.85 | 22 | Yes | 17% |
| MPD6904-12 | (500) 2224 | 12 | 304.8 | 20.25 | 514 | 12 | 12 | 0.85 | 22 | Yes | 17% |
| MPD6904-18 | (500) 2224 | 18 | 457.2 | 26.25 | 667 | 12 | 12 | 0.85 | 22 | Yes | 17% |
| * At Rated Load | |||||||||||
Models

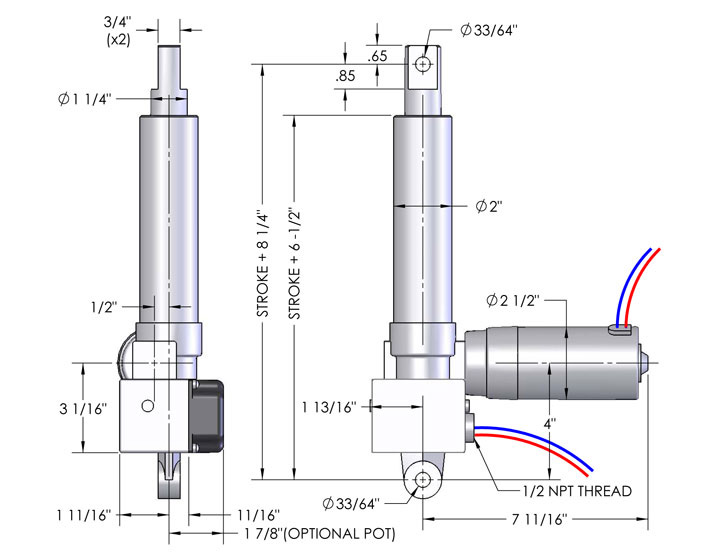

MPD Series Dimensions |
|---|

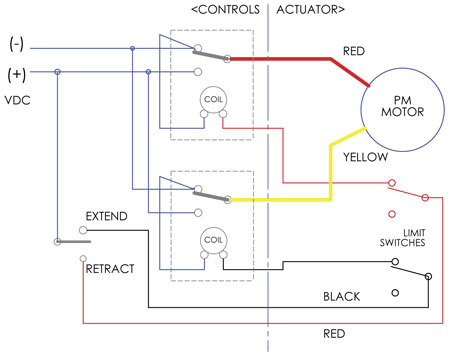

MPD Series Wiring Diagram |
|---|
