CMLA D Series - 2000 lbs

VOLTAGE: 230/460 VAC/3 PH/60 Hz
SCREW TYPE: Ball screw
STANDARD STROKE: 3.9 to 23.6 in (100 to 600 mm)
TEMPERATURE RANGE: -4ºF to 150ºF (-20ºC to 65ºC)
ENVIRONMENTAL RATING: IP66S protection standard

Specifications

CMLA D Series 2000 lb Product Specifications

Capacitor Model Motor Max. Dynamic Load Max. Static Load Screw Gear Motor Power Amperage Lifting Speed Duty Cycle Capacitor Rating
# Type (lbs) N (lbs) N Type Ratio Volts Amps (in/s) mm/s (in/hr) m/hr mdf
192002122 AC (1500) 6700 (2250) 10,008 Trapezoid 17.2 115 8 (0.74) 18.8 (500) 12.7 90
192002121 AC (1500) 6700 (2250) 10,008 Trapezoid 17.2 230 4 (0.74) 18.8 (500) 12.7 25
192002122 AC (1500) 6700 (2250) 10,008 Ball 14.0 115 8.3 (1.45) 36.8 (900) 22.9 90
192002121 AC (1500) 6700 (2250) 10,008 Ball 14.0 230 4.4 (1.45) 36.8 (900) 22.9 25
192002122 AC (750)§ 3336 (2250) 10,008 Ball 6.9 115 8.3 (2.9) 73.7 (1800) 45.8 90
192002121 AC (750)§ 3336 (2250) 10,008 Ball 6.9 230 4.4 (2.9) 73.7 (1800) 45.8 25
§Double Speed - Lower ratio reduces rated load to 750 lbs.
Notes:
1. The correct capacitor mfd should be used for each model or the cylinder will not perform as rated.
2. Order Hard Start Kit 192036494 for applications where high starting torque is required (low temperature, high starting load)

Models

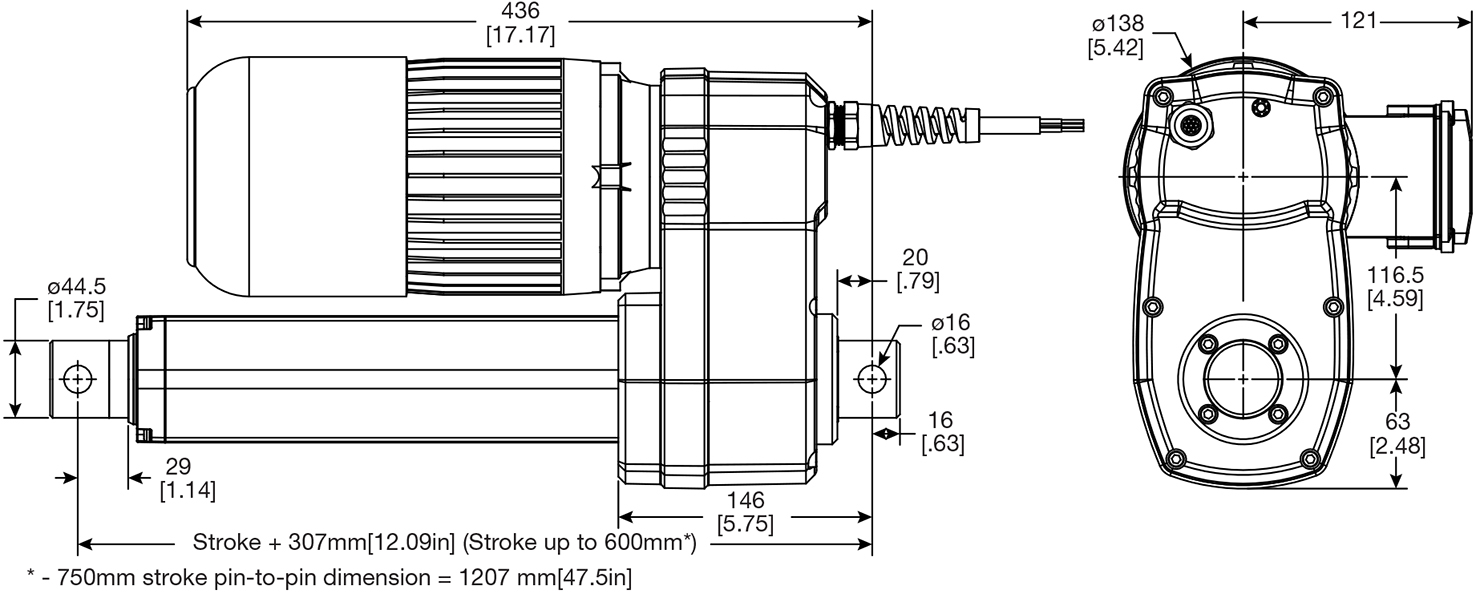

CMLA D Series 2000 lb Dimensions
