Duff-Norton Linear Actuators | LS Series

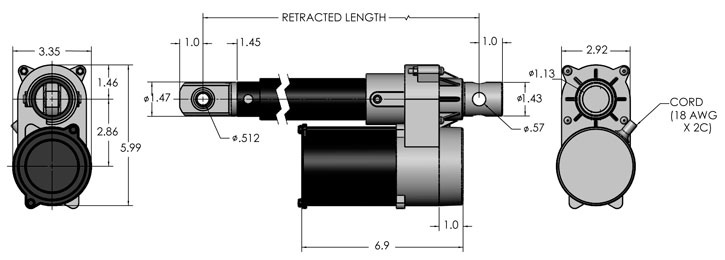

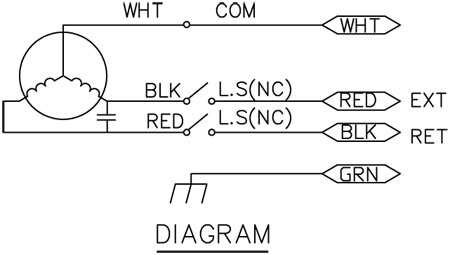

LS Series 25, 26 & 28 Product Specifications
Part Number	Rated Load	Stroke Length		Retracted Length		Voltage	Current Draw*	Speed		Duty Cycle*
#	(lbs) N	In	mm	In	mm	Vac	Amp	in/s	mm/s	%
LS25-1B5TN-04	(450) 2000	4	101	11.4	290	115	1.4	0.26	6.6	17%
LS25-1B5TN-08	(450) 2000	8	203	15.4	391	115	1.4	0.26	6.6	17%
LS25-1B5TN-12	(450) 2000	12	304	19.4	493	115	1.4	0.26	6.6	17%
LS26-1B5TN-04	(560) 2491	4	101	11.4	290	115	1.4	0.21	5.3	17%
LS26-1B5TN-08	(560) 2491	8	203	15.4	391	115	1.4	0.21	5.3	17%
LS26-1B5TN-12	(560) 2491	12	304	19.4	493	115	1.4	0.21	5.3	17%
LS28-1B5TN-04	(675) 3002	4	101	11.4	290	115	1.4	0.15	3.8	17%
LS28-1B5TN-08	(675) 3002	8	203	15.4	391	115	1.4	0.15	3.8	17%
LS28-1B5TN-12	(675) 3002	12	304	19.4	493	115	1.4	0.15	3.8	17%
* At Rated Load

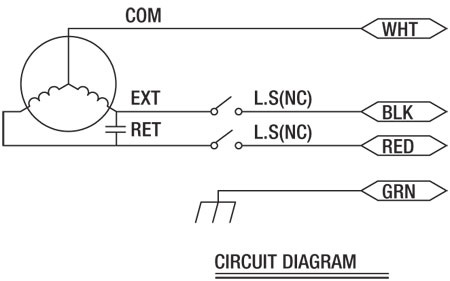

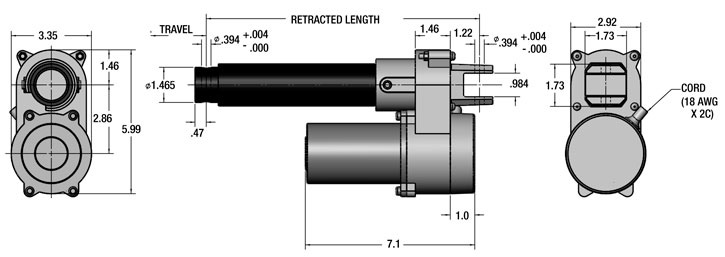

LS Series 35 AC Product Specifications
Part Number	Rated Loads	Stroke Length		Retracted Length		Voltage	Current Draw*	Speed		Duty Cycle*
#	(lbs) N	in	mm	In	mm	VDC		in/s	mm/s
LS35-3B4TN-12	(675) 3002	12	304	19.4	493	12	10	0.21	5.3	17%
LS35-3B4TN-24	(675) 3002	24	609	31.4	797	12	10	0.21	5.3	17%
LS35-1B4TN-12	(675) 3002	12	304	19.4	493	115	1.6	0.26	6.6	17%
LS35-1B4TN-24	(675) 3002	24	609	31.4	797	115	1.6	0.26	6.6	17%
* At Rated Load

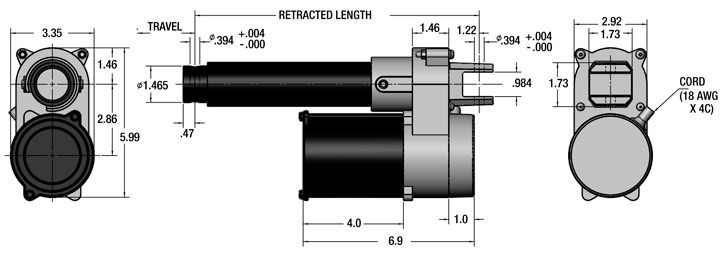

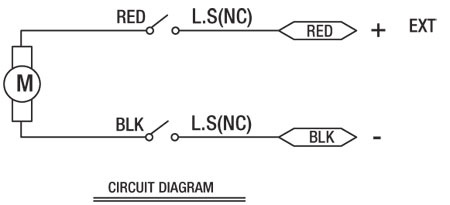

LS Series 35 DC Product Specifications
Part Number	Rated Loads	Stroke Length		Retracted Length		Voltage	Current Draw*	Speed		Duty Cycle*
#	lbs	In	mm	In	mm	VDC	Amp	in/s	mm/s
LS35-3B4TN-12	675	12	304	19.4	493	12 VDC	10	0.21	5.3	17%
LS35-3B4TN-24	675	24	609	31.4	797	12 VDC	10	0.21	5.3	17%
LS35-1B4TN-12	675	12	304	19.4	493	115 VAC	1.6	0.26	6.6	17%
LS35-1B4TN-24	675	24	609	31.4	797	115 VAC	1.6	0.26	6.6	17%
* At Rated Load

LS Series 48 Product Specifications
Part Number	Rated Loads	Stroke Length		Retracted Length		Voltage	Current Draw*	Speed		Duty Cycle*
#	(lbs) N	in	mm	in	mm	VAC	Amp	in/s	mm/s	%
LS48-S001	(660) 2935	24	609	38.8	984	115	1.4	0.15	3.8	17%
* At Rated Load
