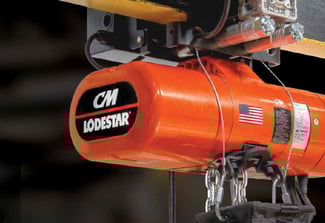

Lodestar XL Electric Chain Hoist
The CM Lodestar XL Electric Chain Hoists features a heavy-duty design with faster speeds, less reeving, and higher capacities than traditional hoists.
Standard Configurations
Consult Factory for Additional Options
Documents
Need Assistance?
Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.
Features and Benefits
Setting the Standard in Overhead Lifting
The CM Lodestar has been trusted for generations in the material handling industry. Designed for durability and reliability with safety in mind, the CM Lodestar sets the standard for overhead lifting.

FEATURES AND BENEFITS
Standard Features
Lifting capacities up to 7-1/2 tons. Double reeved units with 3-5 ton lifting capacities. Maximum lifting speed of 30 feet per minute.
Long Life and Smooth Operation
Forged ten-pocket oblique-lay liftwheel for smooth chain operation, constant chain speed, and reduced chain wear. Gearing operated in oil bath for increased lifting life and quiet operation.
Designed with Safety in Mind
Heavy-duty, multiple disc braking system. Rated H-4, heavy-duty. Standard overload protector. Screw-type limit switches. Thermally protected motor. Factory tested at 125% of rated capacity. Made in U.S.A.
Specifications
Specifications
Model Number | Hoist Model | Lift (ft) | Operating Voltage | Rated Lift Capacity | Reeving |
---|---|---|---|---|---|
C5201 | 10 | 1 | |||
C5202 | |||||
C5203 | |||||
C5207 | |||||
C5208 | |||||
C5209 | |||||
C5213 | |||||
C5214 | |||||
C5215 | |||||
C5219 | |||||
C5220 | |||||
C5221 | |||||
C5225 | |||||
C5226 | |||||
C5227 | |||||
C5283 | |||||
C5285 |
