BETA-EL DGUV-V17-18 Electric Wire Rope Winch

Electric Winches

BETA-EL Image standard
BETA-EL Image Special-executions
BETA-EL Image standard
BETA-EL Image Special-executions

Tensile loads: from 160 to 1200 kg. Precisely lifts and positions equipment and structures, and is proven safe to lift over persons.

Features and Benefits

The BETA-EL with DGUV V 17/18 approval lifts loads over persons perfectly safely and positions equipment and decorations precisely in trade, industry and public use.

The BETA DGUV V 17/18 (BGV C1) is also used in theaters together with the tried and tested DELTA theater winch.

The electric wire rope winch BETA-EL DGUV V 17/18 is also offered in the BGV D8 PLUS design for positioning of structural elements.



Equipment and processing

  • Tensile loads from 160 - 1200 kg
  • Low-maintenance spur gear with milled and ground gears – running in oil bath
  • Very quiet running by diagonal interlock
  • Double electrically released spring-applied disc brake with brake release monitoring (BGV C1)
  • Duty ratio S3 - 40 %
  • Range of temperature: -20 °C – +40 °C
  • Powerful three-phase motor for multi-range voltage 380-420 V / 50 Hz respectively 440-460 V / 60 Hz
  • Motor protection type IP 55
  • Grooved wire rope drum
  • Contactor control 42 V
  • Gear limit switch with operating and emergency end positions
  • Electronic overload protection
  • According to the accident prevention provisions DGUV V 17/18 and DGUV V 54 (BGV D8)
  • Additional equipment as in the rope winch BETA-EL

OPTIONS

External operation via control pendant / radio

Gear limit switch, adjustable

Slack rope switch

Rope pressure roller

Other operating voltages

Other motor protection types

Special wire rope drums for multi-rope operation

Drum extensions for higher stroke travel

Special preservation

Absolute and incremental encoders

Control with frequency converter for continuously adjustable variable speeds

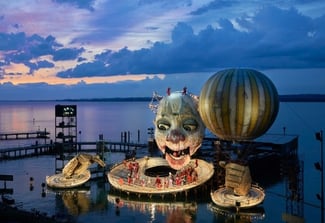

Pfaff-silberblau BETA wire rope winches moves the collar of the Rigoletto on the lake stage at the Bregenz Festival

Columbus McKinnon Engineered Products supplied three BGV C1 BETA wire rope winches for this year's stage programme on the lake stage of the Bregenz Festival. The winches adjust the heavy sections of the stage floor, the so-called collar. The movements of the stage character provide a real show experience at the performances of Rigoletto, an opera by Giuseppe Verdi, which ended this year's season in mid-August.

Rigoletto

BETA EL wire rope winches for height adjustment of a mobile work platform in industrial refractory furnaces

Columbus McKinnon Engineered Products has equipped a vertically travelling platform for demolition and lining work in vertical industrial furnaces with BETA EL electric wire rope winches of the Pfaff-silberblau brand so that high loads can be moved safely and reliably in synchronous operation over long stroke lengths.
