Worm Gear Drive Unit Type S

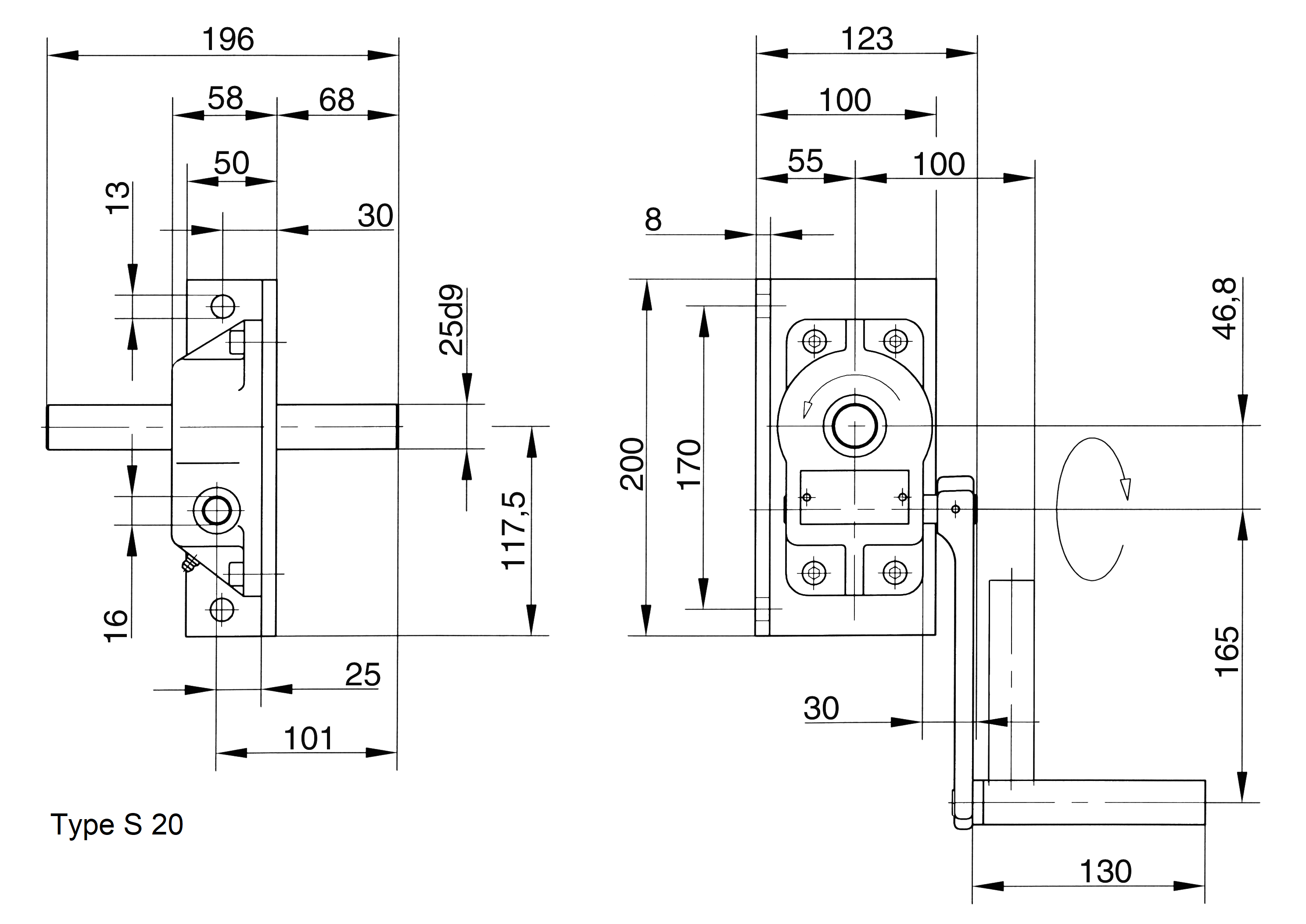

Image Worm gear drive S20

Worm Gear Drive Unit - Model S 20

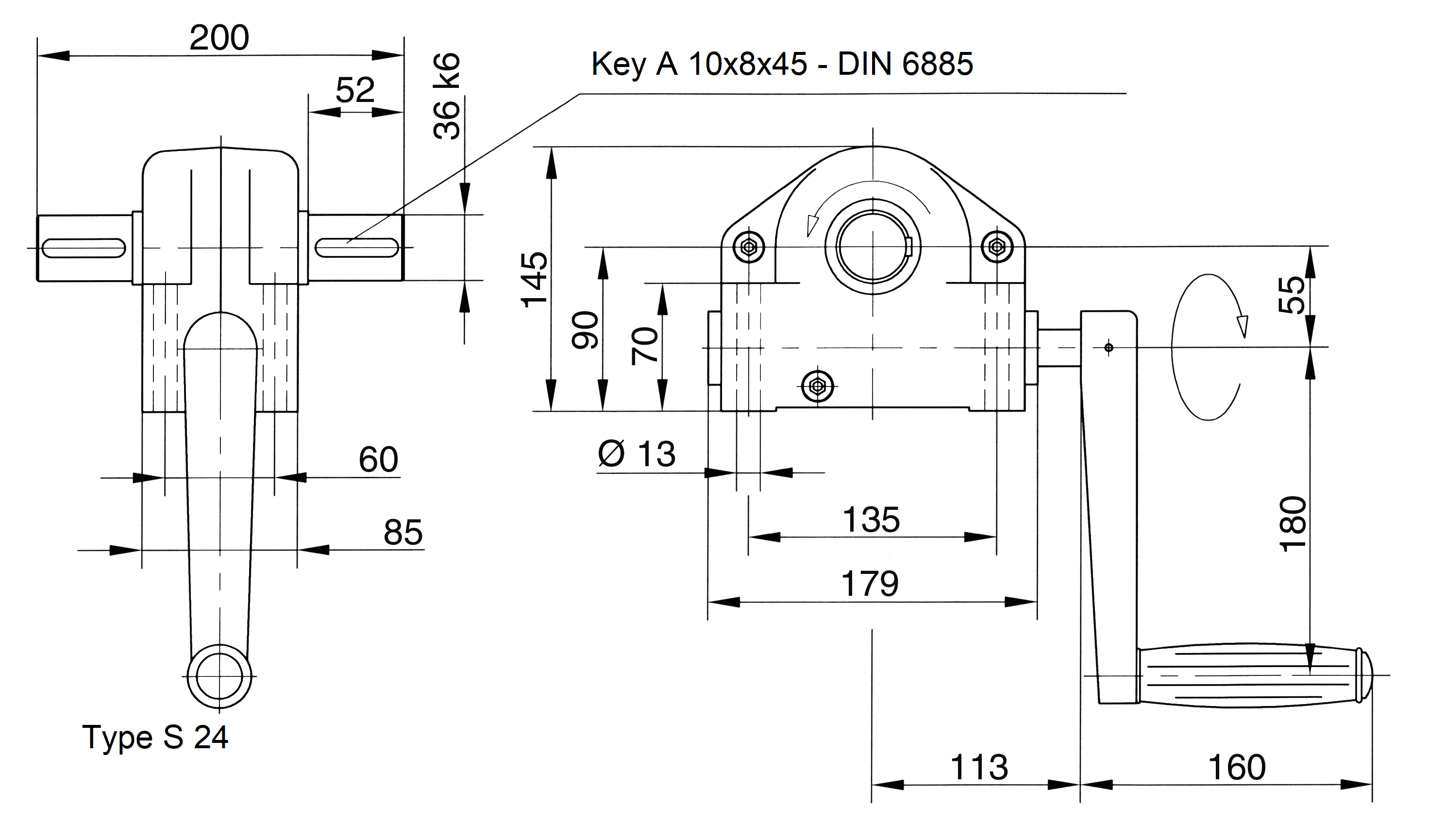

Image Worm gear drive S24

Worm Gear Drive Unit - Model S 24

S20 and S24 Worm Gear Drives are suitable for a large variety of applications in construction for moving or turning loads, as gears for rope drums or chain sprockets or slewing drives.

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

Enclosed Housing
For the protection of parts inside.
Enclosed and precisely machined gear
For little effort and a long service life.
Ratio
20:1 and 24:1
