CMLA-A Linear Industrial Linear Actuator
CMLA-A Linear Industrial Linear Actuator

CMLA-A Series - 500 Lbs

Linear Actuators

CMLA-A Linear Industrial Linear Actuator
CMLA-A Linear Industrial Linear Actuator
The CMLA-A Series 500 lb. capacity linear actuator with an IP66S protection rating, sealed bearings, and high-quality lubricants is a robust and versatile device designed for industrial and outdoor applications where it will be exposed to dust and water. Sealed bearings promote a long service life by preventing contaminants from entering. High-quality lubricants provide smooth operation and extended lifespan.
Free Application Analysis
Linear Actuator Design Guide Duff Norton Capabilities Brochure - Positioning and Process Solutions CMLA-A Product Sheet CMLA-A Specs and Part Numbers CMLA-A Dimensional Drawing Linear Actuator Quick Reference Guide Duff-Norton Product Capabilities Brochure

Features and Benefits
  • Multiple Capacity Ratings
    Four (4) available capacity ratings enable usage in a variety of applications
  • Sealed Bearings and High Quality Lubricants
    Eliminates the need for periodic maintenance
  • Precision Ball Screw Option
    Offers unmatched load speeds
  • Hardened Gears, Screws and Lifting Nuts
    Provide an enhanced service life that surpasses many competitive offerings
  • Overload Prevention
    Safety clutch aids in the prevention of damage due to accidental overload conditions
  • Environmental Protection
    IP66S protection rating enables application in the harshest environmental conditions, including those where washdown is required

Options

OPTIONS

  • Screw Models: Both ball and trapezoidal screw models available
  • Motor Voltages: 115Vac or 230Vac single phase
  • Electric brake: Standard on ball screw models
  • Feedback: Position feedback potentiometer
  • Limit Switch: Adjustable limit switches



Specifications

CMLA A Series 500 lb Product Specifications
Capacitor Model Motor Max. Dynamic Load Max. Static Load Screw Gear Motor Power Amperage Lifting Speed Duty Cycle Capacitor Rating
# Type (lbs) N (lbs) N Type Ratio Volts Amps (in/s) mm/s (in/hr) m/hr mdf
SK6405-7-13 AC (500) 2200 (750) 3336 Trapezoid 11.5 115 2.3 (0.71) 18.0 (810) 20.6 35
SK6405-7-10 AC (500) 2200 (750) 3336 Trapezoid 11.5 230 1.4 (0.71) 18.0 (810) 20.6 10
SK6405-7-13 AC (500) 2200 (750) 3336 Ball 6.5 115 2.4 (1.5) 38.1 (1200) 30.5 35
SK6405-7-10 AC (500) 2200 (750) 3336 Ball 6.5 230 1.5 (1.5) 38.1 (1200) 30.5 10
Notes:
1. The correct capacitor mfd should be used for each model or the cylinder will not perform as rated.
2. Order Hard Start Kit 192036494 for applications where high starting torque is required (low temperature, high starting load)

Models

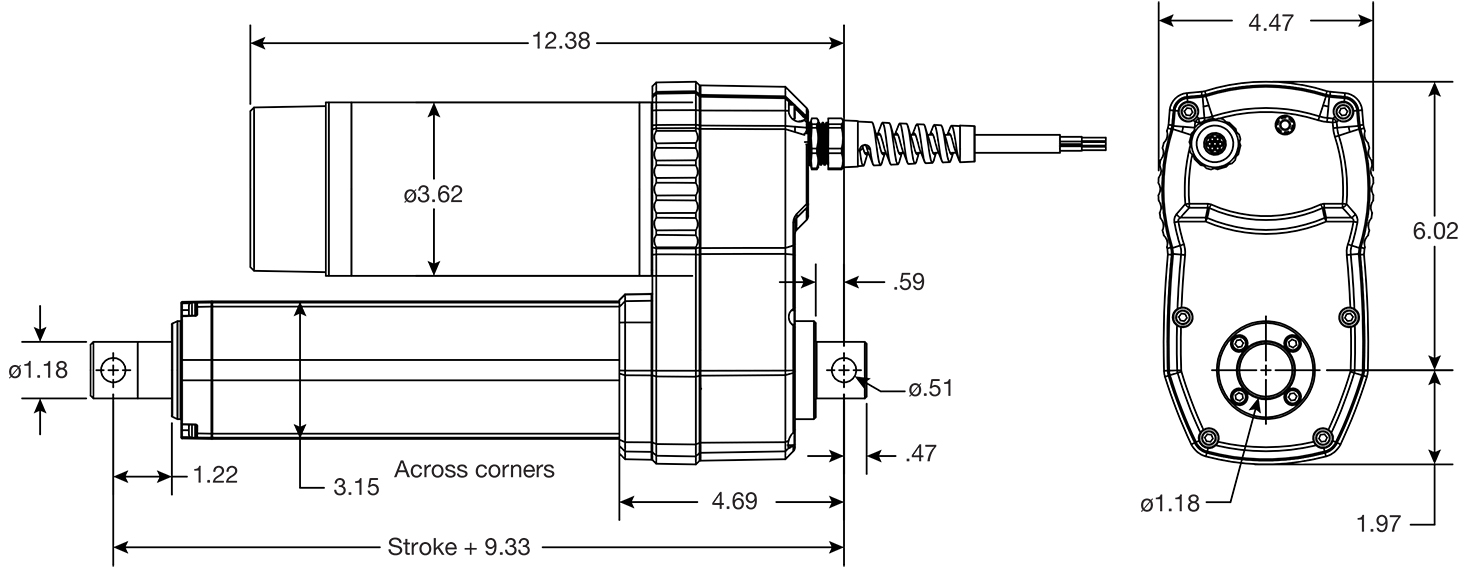

CMLA A Series 500 lb Dimensions
