The HMPB Series 500 lb. capacity with a mechanical braking system, and internal, adjustable limit switches is a device designed for precise and repeatable positioning in demanding applications. It features robust construction and is capable of handling significant loads while maintaining accuracy.

Free Application Analysis
HMPS Product Sheet - 500 lb Linear Actuator Design Guide HMPB Dimensional Drawing - 500 lb HMPB O&M Manual - 500 HMPB Specs & Part Numbers - 500 lb Linear Actuator Quick Reference Guide Duff-Norton Product Capabilities Brochure

Features and Benefits
  • Versatile Design
    Wide range of capacities and voltages for integration into a variety of applications
  • Durable
    Heavy duty design for long life in tough environments
  • Corrosion Resistant
    Aluminum housing and outer tube
  • Precise Positioning
    Precise and repeatable positioning with internal, adjustable limit switches
  • Overload Protection
    Automatic reset thermal overload motor protection
  • Mechanical Braking System
    Reduces back driving and stopping distance
  • Custom Solutions
    Available with experienced Application Engineering Team

Options

OPTIONS:

  • Stainless steel construction
  • Potentiometer for precise position feedback
  • Standard double clevis mounting with options for trunnion, and threaded ends
  • Weather resistant sealant for IP52 rating
  • Bellows boot protection
  • Load limiting friction disc clutch

Specifications
HMPB 500 lb Series Product Specification
Part Number Rated Loads Stroke Length Retracted Length Voltage Current Draw* Speed* Limit Switch Duty Cycle* POT
# (lbs) N In mm In mm (VAC) Hz Amp in/s mm/s Yes/No % Yes/No
MPB6905-3 (500) 2244 3 76 11.25 286 (115) 60 2 0.6 15 Yes 19% No
MPB6905-6 (500) 2244 6 152.4 14.25 362 (115) 60 2 0.6 15 Yes 19% No
MPB6905-12 (500) 2244 12 304.8 20.25 514 (115) 60 2 0.6 15 Yes 19% No
MPB6905-18 (500) 2244 18 457.2 26.25 667 (115) 60 2 0.6 15 Yes 19% No
MPB7905-3 (500) 2244 3 76 11.25 286 (115) 60 1 0.6 15 Yes 22% No
MPB7905-6 (500) 2244 6 152.4 14.25 362 (115) 60 1 0.6 15 Yes 22% No
MPB7905-12 (500) 2244 12 304.8 20.25 514 (115) 60 1 0.6 15 Yes 22% No
MPB7905-18 (500) 2244 18 457.2 26.25 667 (115) 60 1 0.6 15 Yes 22% No
HMPB6905-3 (500) 2244 3 76 11.25 286 (115) 60 5.5 1.33 34 Yes 11% No
HMPB6905-6 (500) 2244 6 152.4 14.25 362 (115) 60 5.5 1.33 34 Yes 11% No
HMPB6905-12 (500) 2244 12 304.8 20.25 514 (115) 60 5.5 1.33 34 Yes 11% No
HMPB6905-18 (500) 2244 18 457.2 26.25 667 (115) 60 5.5 1.33 34 Yes 11% No
PHMPB6905-3 (500) 2244 3 76 11.25 286 (115) 60 5.5 1.33 34 Yes 11% Yes
PHMPB6905-6 (500) 2244 6 152.4 14.25 362 (115) 60 5.5 1.33 34 Yes 11% Yes
PHMPB6905-12 (500) 2244 12 304.8 20.25 514 (115) 60 5.5 1.33 34 Yes 11% Yes
PHMPB6905-18 (500) 2244 18 457.2 26.25 667 (115) 60 5.5 1.33 34 Yes 11% Yes
Clutch models available upon request
Note: A capacitor is required for all AC volt motors. Recommended part SK6405-7-3 (64-72 MFD)
* At Rated Load

Models

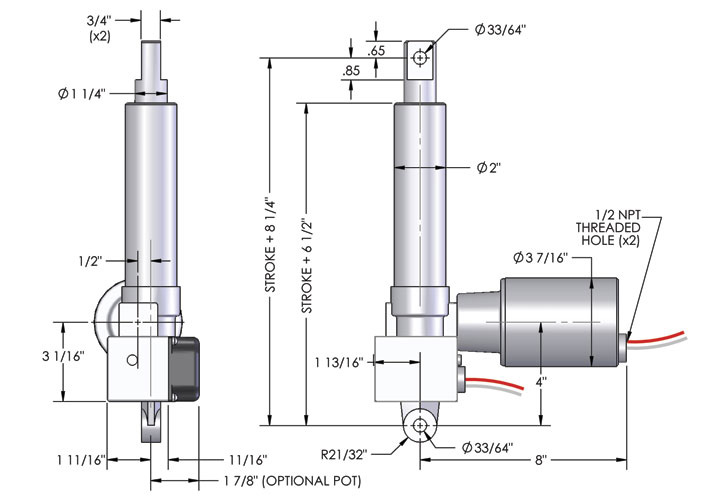

HMPB 500 lb. Series Dimensions

HMPB-500 Series Dimensions

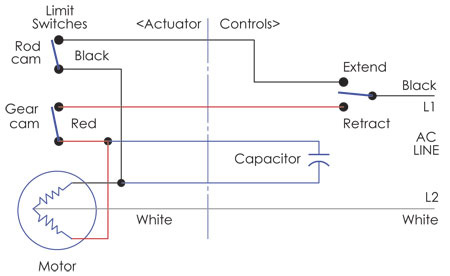

HMPB 500 lb. Series Wiring Diagram

HMPB-500 Series Wiring Diagram
