HMPD Series w/Clutch - 250 lbs

The HMPD Series 250 lb. capacity with clutch offers a balance of strength and safety features for industrial applications. The clutch prevents damage to the actuator and machinery by slipping when the load exceeds a pre-set limit. The clutch can also provide end-of-travel protection by holding the load securely, even if the clutch slips.

Free Application Analysis

Standard Configurations

Temperature Range (ºF): -20ºF to 120ºF
Screw Drive Type: Acme
View Specifications

Documents

Catalogs
Product Sheet
Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

  • Versatile Design
    Wide range of capacities and voltages for integration into a variety of applications
  • Durable
    Heavy duty design for long life in tough environments
  • Corrosion Resistant
    Aluminum housing and outer tube
  • Precise Positioning
    Precise and repeatable positioning with internal, adjustable limit switches
  • Overload Protection
    Automatic reset thermal overload motor protection
  • Mechanical Braking System
    Reduces back driving and stopping distance
  • Custom Solutions
    Available with experienced Application Engineering Team

Optional Features

  • Stainless steel construction
  • Potentiometer for precise position feedback
  • Standard double clevis mounting with options for trunnion, and threaded ends
  • Weather resistant sealant for IP52 rating
  • Bellows boot protection

Specifications

    • Model Number Stroke Length (in) Lifting Speed at Rated Load (in/s) Environment (IP Code) Temperature Range (ºF) Screw Drive Type Limit Switch
      MPD6404-3 3 0.75 IP50 -20ºF to 120ºF Acme Internal adjustable
    • Model Number Stroke Length (in) Lifting Speed at Rated Load (in/s) Environment (IP Code) Temperature Range (ºF) Screw Drive Type Limit Switch
      HMPD3405-12 12 1 IP50 -20ºF to 120ºF Acme Not Included
      HMPD3405-18 18 1 IP50 -20ºF to 120ºF Acme Not Included
      HMPD3405-3 3 1 IP50 -20ºF to 120ºF Acme Not Included
      HMPD3405-6 6 1 IP50 -20ºF to 120ºF Acme Not Included
      MPD3404-12 12 1 IP50 -20ºF to 120ºF Acme Not Included
      MPD3404-18 18 1 IP50 -20ºF to 120ºF Acme Not Included
      MPD3404-6 6 1 IP50 -20ºF to 120ºF Acme Not Included
      MPD3405-12 12 1 IP50 -20ºF to 120ºF Acme Not Included
      MPD3405-18 18 1 IP50 -20ºF to 120ºF Acme Not Included
      MPD3405-3 3 1 IP50 -20ºF to 120ºF Acme Not Included
      MPD3405-6 6 1 IP50 -20ºF to 120ºF Acme Not Included

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] HMPB w/Clutch Product Sheet [Product Sheet] HMPD w/Clutch Specs and Part Numbers

Drawings & Diagrams

[Dimension Input Drawing] HMPD w/Clutch Dimensional Drawing

Product Diagrams

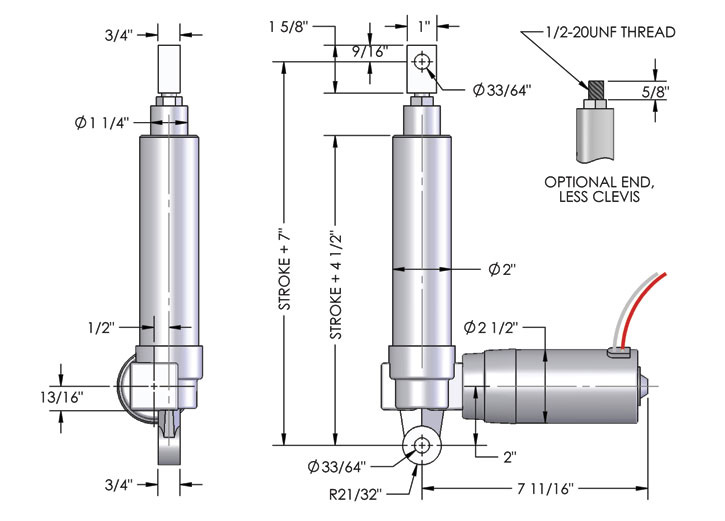

HMPD Series with Clutch Dimensions

HMPD Series with Clutch Dimensions

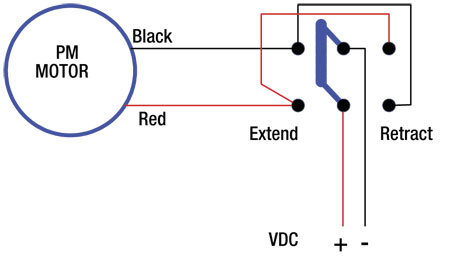

HMPD Series with Clutch Wiring Diagram

HMPD Series with Clutch Wiring Diagram
