MPD Series - 500 lbs

MPD Series Industrial Linear Actuator

The MPD Series 500 lb. capacity with a mechanical braking system, and internal, adjustable limit switches is a device designed for precise and repeatable positioning in demanding applications. It features robust construction and is capable of handling significant loads while maintaining accuracy.

Free Application Analysis

Temperature Range (ºF): -20ºF to 120ºF

Screw Drive Type: Acme

View Specifications

Catalogs

Product Sheet

O&M Manual

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

Versatile Design
Wide range of capacities and voltages for integration into a variety of applications
Durable
Heavy duty design for long life in tough environments
Corrosion Resistant
Aluminum housing and outer tube
Precise Positioning
Precise and repeatable positioning with internal, adjustable limit switches
Overload Protection
Automatic reset thermal overload motor protection
Mechanical Braking System
Reduces back driving and stopping distance
Custom Solutions
Available with experienced Application Engineering Team

Specifications

Model Number	Stroke Length (in)	Lifting Speed at Rated Load (in/s)	Environment (IP Code)	Temperature Range (ºF)	Screw Drive Type	Limit Switch
MPD6404-12	12	0.75	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6404-18	18	0.75	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6404-3	3	0.75	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6404-6	6	0.75	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6405-12	12	0.85	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6405-18	18	0.85	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6405-3	3	0.85	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6405-6	6	0.85	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6904-12	12	0.75	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6904-18	18	0.75	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6904-6	6	0.75	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6905-12	12	0.85	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6905-18	18	0.85	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6905-3	3	0.85	IP50	-20ºF to 120ºF	Acme	Internal adjustable
MPD6905-6	6	0.85	IP50	-20ºF to 120ºF	Acme	Internal adjustable

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[O&M Manual] MPD O&M Manual - 500 lb [Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] MPD Product Sheet [Product Sheet] MPD Specs and Part Numbers

Drawings & Diagrams

[Dimension Drawing] MPD Dimensional Drawing

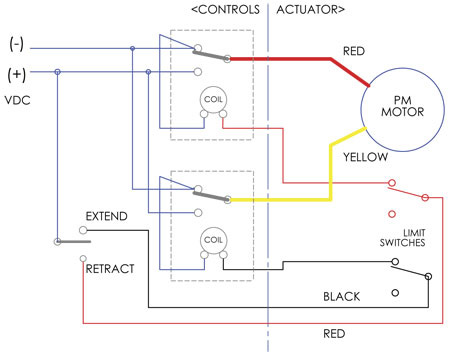

Product Diagrams

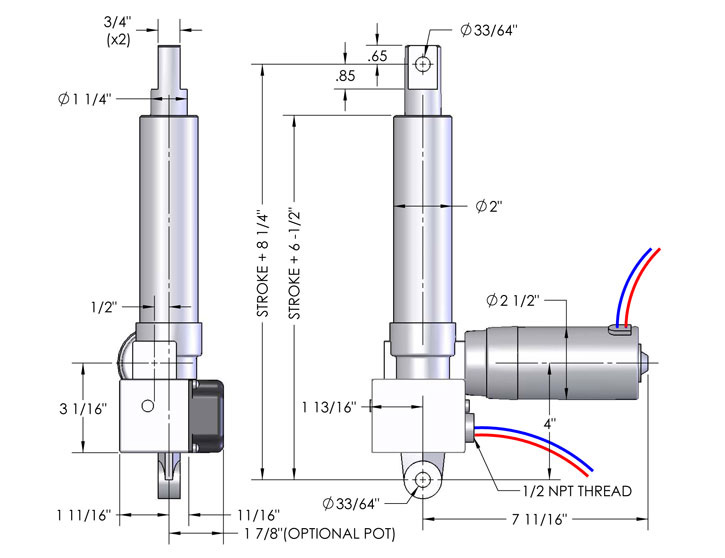

MPD Series Dimensions

MPD Series - 500 lbs
