SPA 2000 Series IP66 Rated Linear Actuator

The SPA Series 1500 lb. capacity, Acme screw linear actuator with internal, adjustable limit switches and automatic reset thermal overload motor protection is a type of electric linear actuator designed for heavy-duty applications requiring controlled, linear motion with built-in safety features. The automatic reset safeguards the motor from overheating due to excessive load or prolonged operation.

Free Application Analysis

Screw Drive Type: Acme

Capacity (lbs): 1500

View Specifications

Catalogs

Product Sheet

O&M Manual

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

Versatile Design
Wide range of capacities and voltages for integration into a variety of applications
Durable
Heavy duty design for long life in tough environments
Corrosion resistant housing
Precise Positioning
Precise and repeatable positioning with internal, adjustable limit switches
Overload Protection
Automatic reset thermal overload motor protection
Resists Back Driving
Mechanical braking system to reduce back driving and stopping distance
Custom Solutions
Available with experienced Application Engineering Team

Specifications

Model Number	Stroke Length (in)	Lifting Speed at Rated Load (in/s)	Environment (IP Code)	Temperature Range (ºF)	Limit Switch	Capacity (lbs)
PSPA6415-12	12	0.83	IP50	15ºF to 120ºF	Included	1500
PSPA6415-18	18	0.83	IP50	15ºF to 120ºF	Included	1500
PSPA6415-24	24	0.83	IP50	15ºF to 120ºF	Included	1500
PSPA6415-3	3	0.83	IP50	15ºF to 120ºF	Included	1500
PSPA6415-30	30	0.83	IP50	15ºF to 120ºF	Not Included	1500
PSPA6415-36	36	0.83	IP50	15ºF to 120ºF	Not Included	1500
PSPA6415-6	6	0.83	IP50	15ºF to 120ºF	Included	1500
PSPA7415-12	12	0.68	IP50	15ºF to 120ºF	Included	1500
PSPA7415-18	18	0.68	IP50	15ºF to 120ºF	Included	1500
PSPA7415-24	24	0.68	IP50	15ºF to 120ºF	Included	1500
PSPA7415-3	3	0.68	IP50	15ºF to 120ºF	Included	1500
PSPA7415-30	30	0.68	IP50	15ºF to 120ºF	Not Included	1500
PSPA7415-36	36	0.68	IP50	15ºF to 120ºF	Not Included	1500
PSPA7415-6	6	0.68	IP50	15ºF to 120ºF	Included	1500
SPA6415-12	12	0.83	IP50	15ºF to 120ºF	Included	1500
SPA6415-18	18	0.83	IP50	15ºF to 120ºF	Included	1500
SPA6415-24	24	0.83	IP50	15ºF to 120ºF	Included	1500
SPA6415-3	3	0.83	IP50	15ºF to 120ºF	Included	1500
SPA6415-30	30	0.83	IP50	15ºF to 120ºF	Included	1500
SPA6415-36	36	0.83	IP50	15ºF to 120ºF	Included	1500
SPA6415-6	6	0.83	IP50	15ºF to 120ºF	Included	1500
SPA7415-12	12	0.68	IP50	15ºF to 120ºF	Included	1500
SPA7415-18	18	0.68	IP50	15ºF to 120ºF	Included	1500
SPA7415-24	24	0.68	IP50	15ºF to 120ºF	Included	1500
SPA7415-3	3	0.68	IP50	15ºF to 120ºF	Included	1500
SPA7415-30	30	0.68	IP50	15ºF to 120ºF	Included	1500
SPA7415-36	36	0.68	IP50	15ºF to 120ºF	Included	1500
SPA7415-6	6	0.68	IP50	15ºF to 120ºF	Included	1500

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[O&M Manual] SPA Series 1,500-2,000 lbs O&M Manual

Product & Data Sheets

[Product Sheet] SP Series Product Sheet

Drawings & Diagrams

[Dimension Drawing] SPA Series 1,500 lbs Dimensional Drawing

Product Diagrams

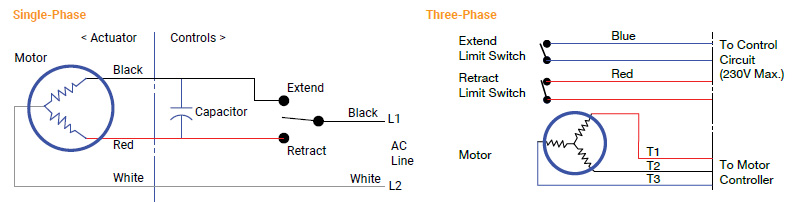

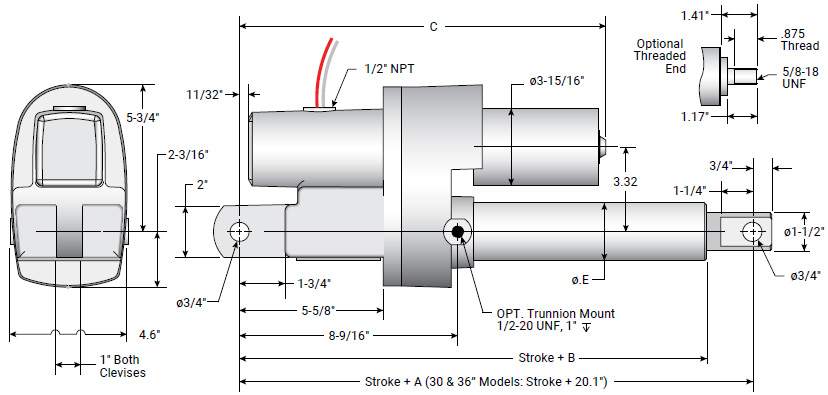

SPA Series 1500 lb. Dimensions
