SPD Series - 1,500 lbs
The SPD Series 1500 lb. actuator is a heavy-duty device designed for tough industrial applications requiring reliable movement and position holding, with features enhancing its durability and adaptability. The bi-directional spring braking system is a powerful and precise device designed for demanding applications requiring controlled linear motion.
Standard Configurations
Capacity (lbs):
1500
Stroke Length (in):
6, 12, 18, 24, 30, 36
Documents
Need Assistance?
Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.
Specifications
Specifications
| Model Number | Capacity (lbs) | Duty Cycle at Rated Load (%) | Environment (IP Code) | Input Voltage (VAC) | Input Voltage (VDC) | Lifting Speed at Rated Load (in/s) | Limit Switch | Retracted Length (in) | Stroke Length (in) |
|---|---|---|---|---|---|---|---|---|---|
| LSPD6415-12 | 1500 | 27 | IP50 | 12 | 0.43 | Included | 26.1 | 12 | |
| LSPD6415-18 | 1500 | 27 | IP50 | 12 | 0.43 | Included | 32.1 | 18 | |
| LSPD6415-24 | 1500 | 27 | IP50 | 12 | 0.43 | Included | 38.1 | 24 | |
| LSPD6415-30 | 1500 | 27 | IP50 | 12 | 0.43 | Included | 50.1 | 30 | |
| LSPD6415-36 | 1500 | 27 | IP50 | 12 | 0.43 | Included | 56.1 | 36 | |
| LSPD6415-6 | 1500 | 27 | IP50 | 12 | 0.43 | Included | 20.1 | 6 |
Documents
Documents
Brochures & Catalogs
Manuals & Supplements
Product & Data Sheets
Drawings & Diagrams

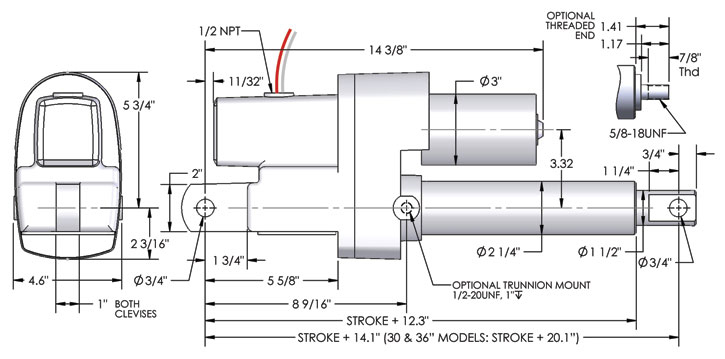

SPD Series Dimensions
|
|---|

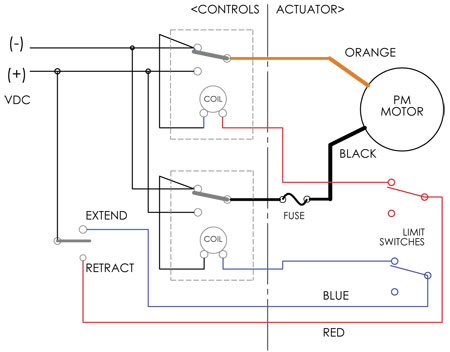

SPD Series Wiring Diagram
|
|---|
| Note: (2) relays are required for DC limit switch models |
