TAC Series - 500 lbs
Linear Actuators
The TAC Series 500 lb. capacity actuator with a load-limiting ball detent clutch and a steel translating tube with zinc chromate plating is a robust piece of equipment. When a load exceeds the preset limit, the clutch disengages, preventing the actuator from extending further. Zinc chromate plating enhances the corrosion resistance of the steel tube.
Features and Benefits
- Durable
Heavy duty design for long life in tough environments - Precise Torque Limiting
Load limiting ball detent clutch - Maintains Ductility
Steel translating tube with zinc chromate plating - Corrosion Resistant
Aluminum housing and outer tube - Overload Protection
Automatic reset thermal overload motor protection
Options
OPTIONS:
- Capacitor
- Weather resistant sealant - IP52
- Bellows boot
- Threaded end
Specifications
TAC Series 500 lb. Product Specifications |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed* | High Speed Motor | Duty Cycle* | |||
| # | (lbs) N | in | mm | in | mm | VDC | Amp | in/s | mm/s | Yes/No | % |
| TAC05-1D20-4 | (500) 2224 | 4 | 102 | 12 | 305 | 12 | 10 | 0.45 | 11 | Yes | 40% |
| TAC05-1D20-8 | (500) 2224 | 8 | 203 | 16 | 406 | 12 | 10 | 0.45 | 11 | Yes | 40% |
| TAC05-1D20-12 | (500) 2224 | 12 | 305 | 20 | 508 | 12 | 10 | 0.45 | 11 | Yes | 40% |
| TAC05-1D20-18 | (500) 2224 | 18 | 457 | 26 | 660 | 12 | 10 | 0.45 | 11 | Yes | 40% |
| TAC05-2D20-4 | (500) 2224 | 4 | 102 | 12 | 305 | 24 | 5 | 0.45 | 11 | Yes | 40% |
| TAC05-2D20-8 | (500) 2224 | 8 | 203 | 16 | 406 | 24 | 5 | 0.45 | 11 | Yes | 40% |
| TAC05-2D20-12 | (500) 2224 | 12 | 305 | 20 | 508 | 24 | 5 | 0.45 | 11 | Yes | 40% |
| TAC05-2D20-18 | (500) 2224 | 18 | 457 | 26 | 660 | 24 | 5 | 0.45 | 11 | Yes | 40% |
| *At Rated Load | |||||||||||
Models

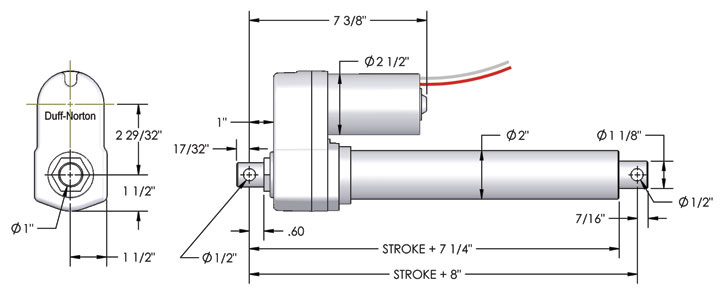

TAC Series 500 lb.Dimensions |
|---|

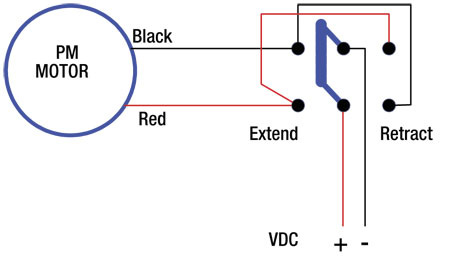

TAC Series 500 lb. Wiring Diagram |
|---|
