TMD02 Series - 250 lbs

The TMD02 Series 250 lb. capacity Heavy Duty Linear Actuator can be used for various Industrial applications across different industries. They are commonly found in manufacturing, renewable energy, and industrial automation, for tasks like opening and closing doors, lifting tables, and adjusting solar panels.

Free Application Analysis

Standard Configurations

Capacity (lbs): 250
Stroke Length (in): 2, 4, 6, 8, 10, 12
View Specifications

Documents

Product Sheet
O&M Manual
Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

  • Compact Design
    Ideal for applications with light loads and limited space
  • Quiet Operation
    Belt drive for quiet operation
  • Corrosion Resistant
    Aluminum housing and outer tube, stainless steel translating tube
  • Easy Integration
    Terminal strip for easy limit switch integration
  • No Restraining Torque
    Keyed translating tube eliminates the need for restraining torque
  • Permanent Magnet Motors
    No thermal overload protection

Optional Features

  • Adjustable limit switch for safe and repeatable positioning
  • Pulse generator for precise positioning feedback

Specifications

TMD02 Series Dimensions and Wiring Diagram

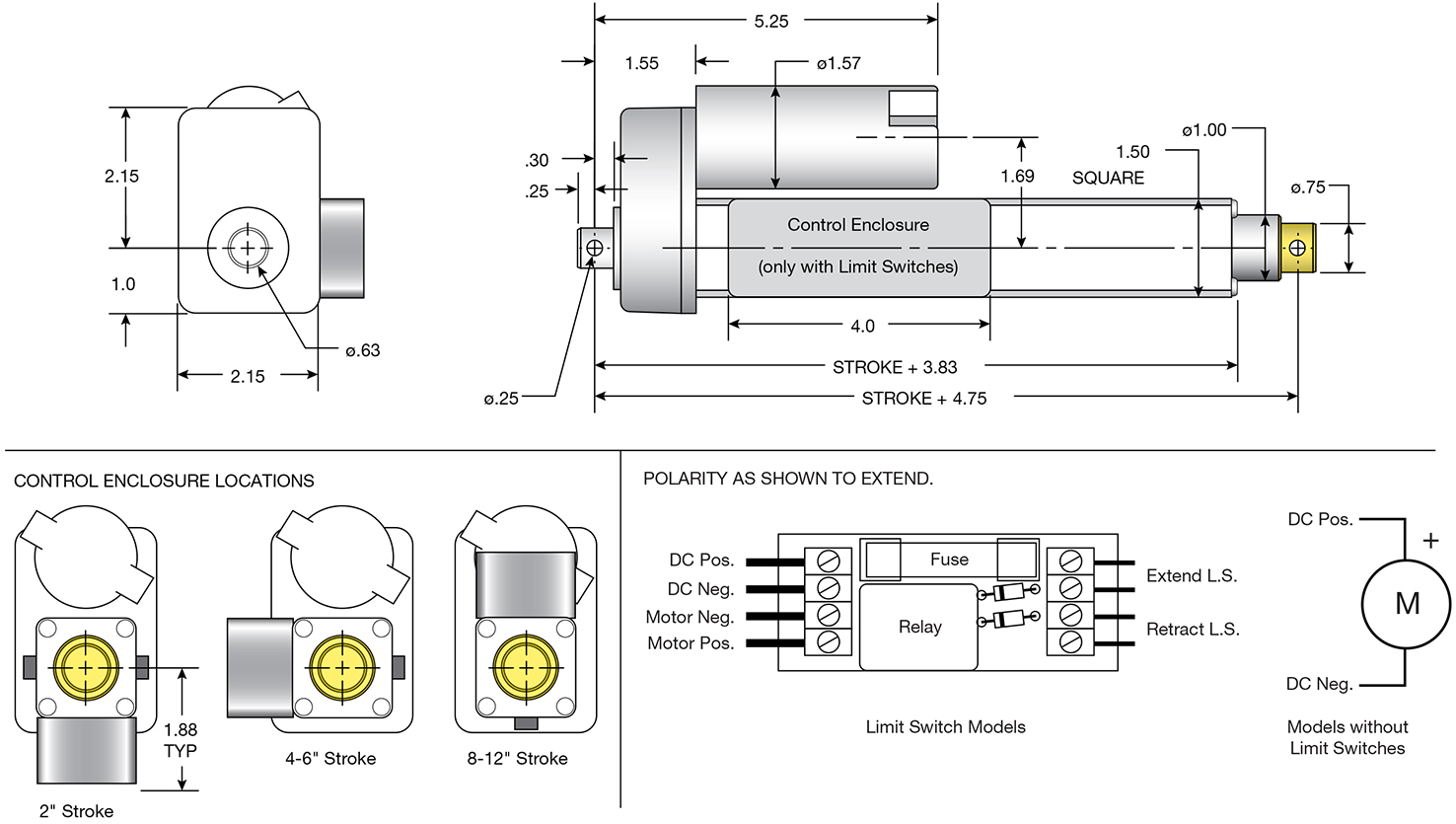

TMD02 Series Dimensional Drawing

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide [Brochure] Duff-Norton Product Capabilities Brochure

Manuals & Supplements

[O&M Manual] TDM02 O&M Manual [Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] TMD02 Product Sheet [Product Sheet] TMD02 Specs and Part Numbers

Drawings & Diagrams

[Dimension Input Drawing] TMD02 Dimensional Drawing
