Weblok Assembly

Working Load Limit: Up to 75,000 lbs
CM Weblok Assemblies are available in two designs. Synthetic-to-attachment Webloks combine our industry-leading CM Hammerlok® coupling link with a CM synthetic sling attachment. Synthetic-to-synthetic Webloks feature two synthetic sling attachments.

Standard Configurations

WLL (lbs): 6,250 @ 5:1, 7,850 @ 4:1, 12,500 @ 5:1, 15,650 @ 4:1, 18,750 @ 5:1, 23,450 @ 4:1, 30,000 @ 5:1, 37,500 @ 4:1, 40,000 @ 5:1, 50,000 @ 4:1, 60,000 @ 5:1, 75,000 @ 4:1, 5000, 10000, 15000, 25000, 40000, 60000
View Specifications

Documents

Brochure
Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

  • Made of Durable Forged Alloy Steel
    Forged rigging products are better than cast rigging products. When compared, forged parts feature greater ductility, better fatigue life, higher tensile strength and have a finer grain structure. This combination of enhanced features allows for lighter, better performing products with a lower risk of internal defects.
  • Durable Orange Powder Coaded Finish
    Synthetic sling attachment portions of the CM Weblok feature the widely recognized CM orange powder coated finish, providing an extra-smooth surface for synthetic attachments.
  • Meets ASTM A952 & WSTDA-RS1 Standards
    Buy with confidence knowing your product is safe to operate and meets industry-recognized overhead lifting standards.
  • Industry-Leading Safety
    Available with either single or double retention. Webloks with double retention feature a load pin retention system that incorporates a bolt head and lock nut to prevent the load pin from backing out during extreme use - delivering the highest level of safety on the market. For less severe applications, single-retention Webloks use the same retention system as CM's legendary Hammerlok.

Additional Information

  • 5:1 Design Factor
  • 100% Proof Testing
  • Made in the USA

Quick, Easy, Safe.

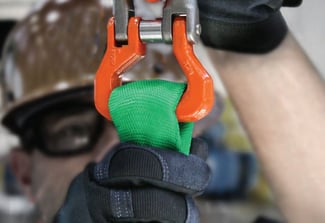

For use with round slings, web slings, and high-performance synthetics. Simply connect a sling to the synthetic sling attachment of the Weblok and a master link or other rigging attachment to the Hammerlok portion to efficiently and safely lift your load. For synthetic-to-synthetic Webloks, simply attach a sling to both ends.

Specifications

    • Model Number Description Finish Size (in) WLL (lbs)
      C867035-4 Double Orange Powder Coated 1 40,000 @ 5:1, 50,000 @ 4:1
      C877035-4 Double Orange Powder Coated 1 40,000
    • Model Number Description Finish Size (in) WLL (lbs)
      C867040-4 Double Orange Powder Coated 1-1/4 60,000 @ 5:1, 75,000 @ 4:1
      C877040-4 Double Orange Powder Coated 1-1/4 60,000
    • Model Number Description Finish Size (in) WLL (lbs)
      C867025-2 Single Orange Powder Coated 3/4 18,750 @ 5:1, 23,450 @ 4:1
      C867025-4 Double Orange Powder Coated 3/4 18,750 @ 5:1, 23,450 @ 4:1
      C877025-2 Single Orange Powder Coated 3/4 15,000
      C877025-4 Double Orange Powder Coated 3/4 15,000
    • Model Number Description Finish Size (in) WLL (lbs)
      C867010-2 Single Orange Powder Coated 3/8 6,250 @ 5:1, 7,850 @ 4:1
      C867010-4 Double Orange Powder Coated 3/8 6,250 @ 5:1, 7,850 @ 4:1
      C877010-2 Single Orange Powder Coated 3/8 5,000
      C877010-4 Double Orange Powder Coated 3/8 5,000
    • Model Number Description Finish Size (in) WLL (lbs)
      C867020-2 Single Orange Powder Coated 5/8 12,500 @ 5:1, 15,650 @ 4:1
      C867020-4 Double Orange Powder Coated 5/8 12,500 @ 5:1, 15,650 @ 4:1
      C877020-2 Single Orange Powder Coated 5/8 10,000
      C877020-4 Double Orange Powder Coated 5/8 10,000
    • Model Number Description Finish Size (in) WLL (lbs)
      C867030-2 Single Orange Powder Coated 7/8 30,000 @ 5:1, 37,500 @ 4:1
      C867030-4 Double Orange Powder Coated 7/8 30,000 @ 5:1, 37,500 @ 4:1
      C877030-2 Single Orange Powder Coated 7/8 25,000
      C877030-4 Double Orange Powder Coated 7/8 25,000
