Unified Festoon Trolley
Festoon trolleys are mobile supports for electrical cables or pneumatic and hydraulic lines that allow the cable to move with a hoist, trolley, or other mobile equipment. Festoon trolleys come in a variety of sizes and configurations to handle round or flat cables and hoses.
Need Assistance?
Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.
Features and Benefits
Features and Benefits
- High-Tensile Almag Alloy Frame
Constructed from lightweight yet durable almag alloy. Provides high strength-to-weight ratio, ensuring long service life without adding unnecessary load to the system. - Precision Ball Bearings in Nylon-Reinforced Wheels
1.8" nylon glass-reinforced wheels with permanently sealed precision ball bearings. Delivers smooth, quiet, and maintenance-free operation, ideal for continuous-duty environments - Dielectric Insulation
All trolleys are dielectrically insulated. Enhances electrical safety when used with power cables, reducing the risk of shorts or arcing. - Low Inertia Design
Inertia is less than 1% of the load. Minimizes resistance to motion, improving energy efficiency and responsiveness of the crane system. - Wide Operating Temperature Range
Operates reliably from +32°F to +212°F (0°C to 100°C). Suitable for a broad range of industrial environments, including high-heat or temperature-variable settings.
Optional Features
- Saddle Types Accommodates different cable or hose types and diameters, ensuring secure and organized routing. Saddle types include Small Saddle, Large Saddle, Flatwire Saddle, UII Saddle, and 12" Saddle.
- Sling Trolleys Ideal for supporting heavier or bundled cables and hoses with flexible suspension. Small Sling and Large Sling Trolleys available.
- Cable Trolley Variants Cable Trolleys with Small, Large, or Flatwire Saddles. Tailored for specific cable geometries, improving cable life and system performance.
- Festoon Slider A low-friction sliding support for cable management. Provides a cost-effective alternative to wheeled trolleys in short-run or low-duty applications.
FAQs
FAQs
What track sizes are compatible with the Unified Festoon Trolley?
The trolley is designed for use with Unified enclosed track systems, specifically sizes 3, 4, and 8. This ensures compatibility across a wide range of crane capacities and layouts.
What types of cables or hoses can the trolley support?
The trolley can accommodate both round and flat cables, as well as pneumatic or hydraulic hoses, depending on the saddle or sling configuration selected. Optional saddles include small, large, flatwire, and 12" variants.
What is the load capacity of each trolley?
Each trolley is engineered to support typical festoon loads, with specific capacities depending on the saddle type and cable configuration. For precise load ratings, consult the product’s technical documentation or request a load chart.
Are the wheels suitable for high-cycle or continuous-duty applications?
Yes. The trolleys use 1.8" nylon glass-reinforced wheels with sealed precision ball bearings, designed for smooth, quiet, and maintenance-free operation in high-cycle environments.
Can the system be used in electrically sensitive environments?
Yes. All Unified Festoon Trolleys are dielectrically insulated, making them suitable for applications where electrical isolation is critical, such as systems carrying power cables or operating near sensitive equipment.
Related Resources

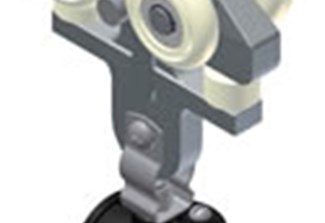

ETA-4/5 Trolley Features*
- High tensile almag alloy frame
- 1.8" Nylon glass reinforced wheels, with permanently sealed precision ball bearings
- High impact nylon guide rollers with dual race ball bearings for smooth, quiet operation
- Operates within enclosed-rail free from obstructing material
- Dielectrically insulated
- Low inertia less than 1% of load
- Operating temperature range: +32 degrees to +212 degrees F
*excludes cable trolley and festoon slider

ETA-4/5 Trolley Parts
Part # 20155
Small Saddle Trolley
Part # 20160
Large Saddle Trolley
Part # 20165
Flatwire Saddle Trolley
Part # 20170
Large Sling Trolley
Part # 20175
Small Sling Trolley
Part # 20180
UII Saddle Trolley
Part # 20185
UII Saddle Trolley with 12" Saddle
Part # 78170
Cable Trolley with Flatwire Saddle
Part # 78184
Cable Trolley with Small Saddle
Part # 78190
Cable Trolley with Large Saddle
Part # 78260
Festoon Slider

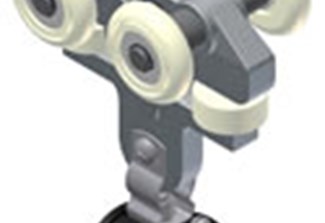

ETA-8 Trolley Features*
- High tensile almag alloy frame
- 1.8" Nylon glass reinforced wheels, with permanently sealed precision ball bearings
- High impact nylon guide rollers with dual race ball bearings for smooth, quiet operations
- Operates within enclosed-rail free from obstructing material
- Dielectrically insulated
- Low inertia less than 1% of load
- Operating temperature range: +32 degrees to +212 degrees F
*excludes cable trolley and festoon slider

ETA-8 Trolley Parts
Part # 20091
Small Saddle Trolley
Part # 20092
Large Saddle Trolley
Part # 20093
Flatwire Saddle Trolley
Part # 20094
Large Sling Trolley
Part # 20095
Small Sling Trolley
Part # 20096
UII Saddle Trolley
Part # 20097
Festoon Trolley with 12" Saddle
Part # 78170
Cable Trolley with Flatwire Saddle
Part # 78184
Cable Trolley with Small Saddle
Part # 78190
Cable Trolley with Large Saddle
Part # 78260
Festoon Slider
